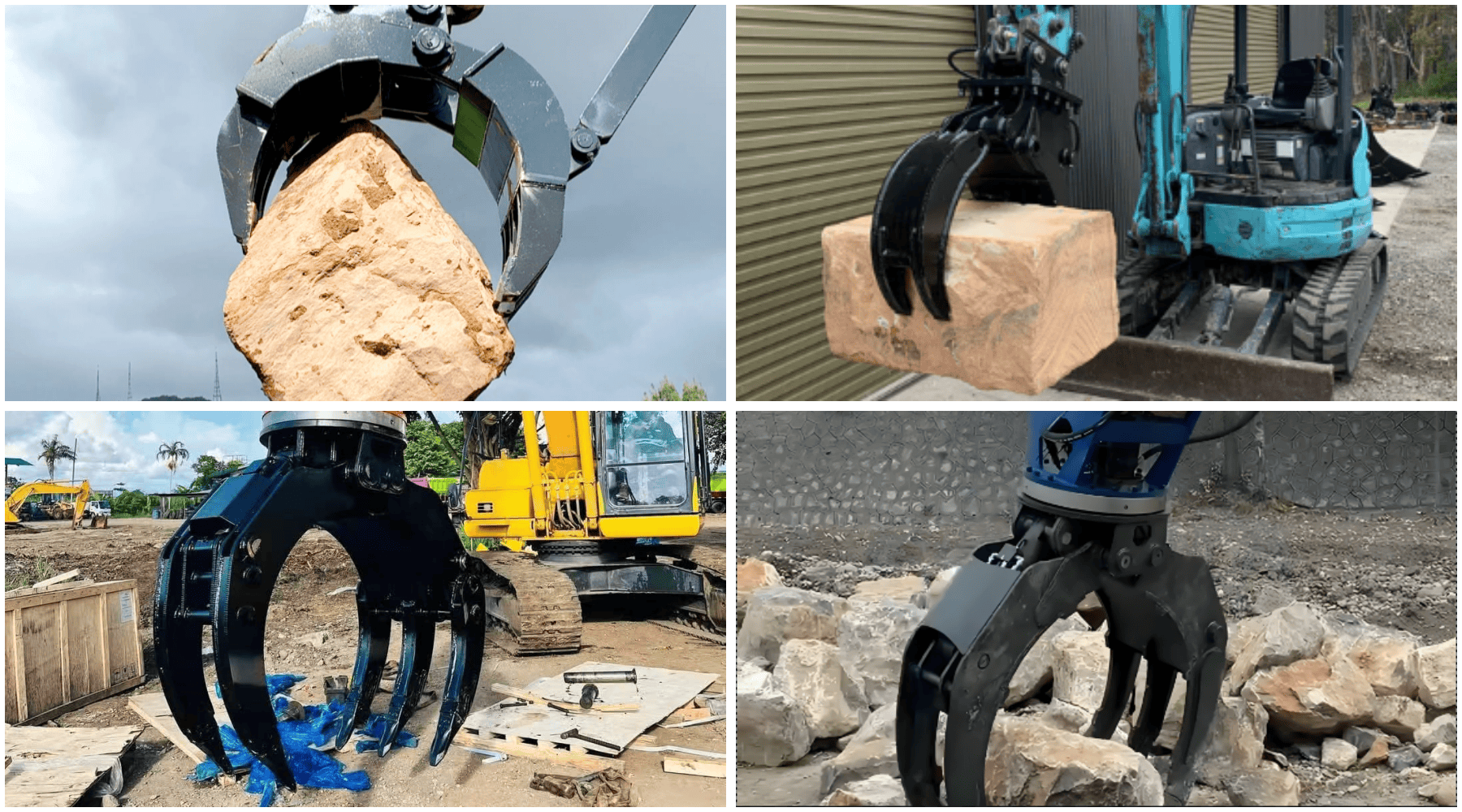

In construction, demolition, waste disposal, forestry, and mining operations, the excavator grapple has emerged as a versatile and essential attachment, transforming ordinary excavators into efficient material handling tools. With its strong clamping force, flexible operation, and wide adaptability, it solves the pain points of difficult handling of irregular materials, greatly improving operation efficiency and reducing labor costs.
Today, we will focus on the working principle and practical effects of the excavator grapple, helping you fully grasp its core value and application advantages.
Working Principle of Excavator Grapple: Hydraulic Drive.The core working principle of the excavator grapple is based on hydraulic transmission, which relies on the excavator's own hydraulic system to provide power, realizing the clamping and loosening of the grapple, and completing the handling, sorting, and stacking of materials.Its structure is mainly composed of a grapple frame, clamping arms, hydraulic cylinders, connecting rods, and control valves, and each part cooperates closely to ensure stable and flexible operation.
Specifically, the working process can be divided into three key steps:
First, the hydraulic pipeline of the grapple is connected to the excavator's hydraulic system, and the control valve is used to control the on-off and flow of hydraulic oil, thereby regulating the movement of the hydraulic cylinder.
Second, when clamping materials is required, the operator controls the hydraulic cylinder to extend through the excavator's operation handle; the hydraulic cylinder pushes the connecting rod, which drives the two clamping arms to rotate inward around the hinge point of the frame, and gradually clamps the materials until the required clamping force is reached.
Third, when loosening materials is required, the operator controls the hydraulic cylinder to retract, and the clamping arms rotate outward under the action of the return spring or the gravity of the materials, realizing the loosening of the materials and completing the material placement.
It is worth noting that high-quality excavator grapples are equipped with a pressure relief valve and a speed control valve. The pressure relief valve can automatically relieve pressure when the clamping force exceeds the rated value, avoiding damage to the grapple, hydraulic cylinder, or materials due to excessive force; the speed control valve can adjust the clamping and loosening speed of the grapple according to the type and weight of materials, ensuring precise control and preventing material damage or slipping caused by too fast or too slow movement.
In addition, according to the different driving modes, excavator grapples can be divided into single-cylinder grapples and double-cylinder grapples. The single-cylinder grapple drives the two clamping arms to move synchronously through one hydraulic cylinder, which has a simple structure and low maintenance cost, suitable for handling light and medium-sized materials; the double-cylinder grapple uses two hydraulic cylinders to drive the clamping arms respectively, which has stronger clamping force and more stable operation, suitable for handling heavy, large, or irregular materials.
Excavator Grapples' core advantages are mainly reflected in four aspects:
1. Improve Handling Efficiency, Reduce Labor Dependence Traditional handling of irregular materials (such as stones, steel bars, waste, tree trunks) often requires a lot of manual cooperation, which is not only inefficient but also easy to cause work-related accidents. The excavator grapple can directly clamp materials with one operation, completing the whole process of grabbing, lifting, moving, and placing in one go, without manual assistance. Under normal circumstances, the handling efficiency of the grapple is 3-5 times that of manual handling, which can greatly shorten the construction period and improve the project progress.
2. Strong Versatility, Adapt to Multiple Scenarios. The excavator grapple has strong adaptability and can be matched with excavators of different models (mini excavators, medium excavators, large excavators). It can handle various materials, including construction waste, stones, sand, steel bars, pipes, tree trunks, and agricultural straw. It is widely used in construction sites, demolition sites, waste treatment plants, mines, forests, farms, and other scenarios. By replacing different types of grapple heads (such as needle-type grapples, plate-type grapples, and rotary grapples), it can also realize functions such as sorting, crushing, and rotary handling, further expanding the application scope of the excavator.
3. Stable Clamping, Safe and Reliable Operation .The excavator grapple adopts a hydraulic clamping mode, which has strong clamping force and stable performance. It can firmly clamp materials of different shapes and weights, and is not easy to slip or fall during the lifting and moving process, ensuring the safety of operators and equipment. At the same time, the grapple is made of high-strength manganese steel plates, which have good wear resistance, impact resistance, and service life, and can adapt to the harsh working environment of construction sites. In addition, the overload protection function of the grapple can avoid equipment damage caused by improper operation, further improving the safety and reliability of operation.
4. Reduce Labor Costs and Project Investment.The use of excavator grapples can greatly reduce the number of manual workers, reducing labor costs and management costs for enterprises. Compared with purchasing special handling equipment, the excavator grapple has the advantages of low investment, quick effect, and easy installation – it can be installed and used by connecting the hydraulic pipeline with the excavator, without additional modification of the excavator. This not only saves the investment cost of special equipment but also makes full use of the existing excavator resources, improving the utilization rate of equipment and reducing the overall project investment.
Conclusion: The Indispensable Versatile Accessory for Excavators
The excavator grapple, with its simple and reliable hydraulic working principle and efficient and versatile practical effects, has become an indispensable core accessory for modern engineering operations. It not only solves the pain points of difficult handling of irregular materials but also improves operation efficiency, ensures operation safety, and reduces project costs, bringing considerable economic benefits and convenience to engineering enterprises.
Whether it is construction waste cleaning on the construction site, stone handling in the mine, tree trunk handling in the forest, or waste sorting in the waste treatment plant, the excavator grapple can play its unique role. Choosing a high-quality excavator grapple can not only extend the service life of the equipment but also further exert the value of the excavator, helping you complete various handling tasks more efficiently and smoothly.
